【PPMF.02-933-1002】Custom 2 Pin pogo pin magnetic connectors

NOTES:
1.ElectricalRated Current & Voltage : DC 12 V : 2.0A Max.

Contact Resistance: 50 mohm maximumat Working Height( Quiescence)

2.MechanicalFull store: Working Store: 0.6-0.7 mm

Spring Force: 40gf±10gf  at Working Height

Durability: 10,000 cycles(minimum)

3.EnvironmentalOperating Temperature: -25℃~+85℃

Humidity Range: 10%RH~90%RH

Solt Spray: 48 Hours

4.When the current is greoter thon 1A then need toincrease the time delay circuit(3 second)

5.To avoid arcing issue, The adaptor start to powersupply after connector mated fully.

6. To ensure the best usage,please operate it basedon the working height.

7 .RoHs&HF compliant product.

Custom 2 Pin pogo pin magnetic connectors, wholesale various high quality Magnetic Electrical Connectors products from SUNMON.

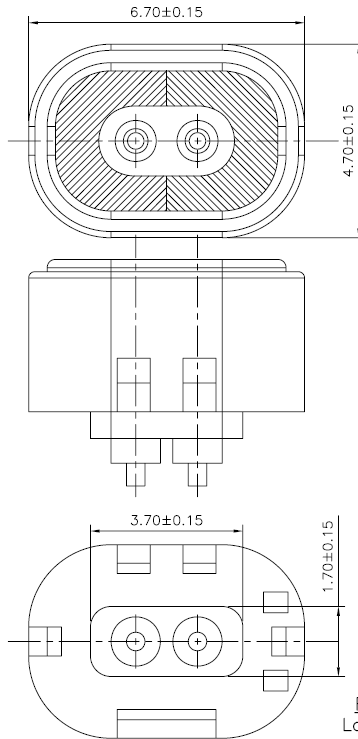

Specification of SUNMON Custom 2 Pin pogo pin magnetic connectors — Female Part

Custom 2 Pin pogo pin magnetic connectors

Part No.PPF.02-933-1002
Humidity10%-90%RH
Life test100,00 cycles
Rated voltage & current12V, 2A
Contact resistance50 mohm maximum
Application
 DownloadedDrawing

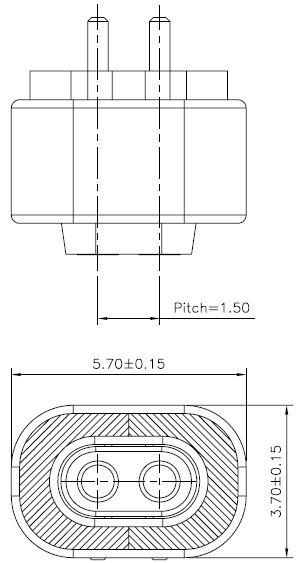

Specification of SUNMON Custom 2 Pin pogo pin magnetic connectors — Male Part

Custom 2 Pin pogo pin magnetic connectors

Part No.PPM.02-933-1002
Contact force 60gf±15gf  Working Store
Life test100,00 cycles
Rated voltage & current12 V, 2A
Contact resistance50 milliohm Max
Application
 DownloadedDrawing

SUNMON magnetic connector advantages

– The magnetic connector consists of magnets at the base of the pogo pin connector and a Ru iron boron permanent magnet to ensure reliable and secure connection of the male and female parts.

– SUNMON was founded on August 25, 2009, and has successively established companies in Mainland China and Hong Kong, China.

– The magnetic connector completes the deficiency of traditional connectors with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
